TSK ratary table

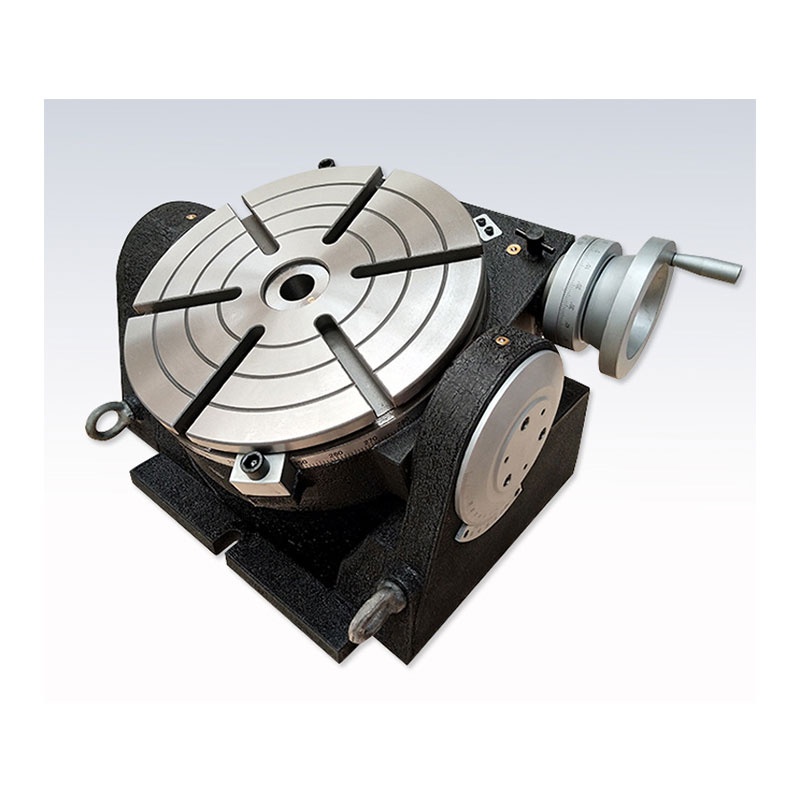

TSK tilting rotary table

Specifications	TSK250	TSK320	TSK400
Diameter of table (mm)	Φ250	Φ320	Φ400
Mose taper of the center hole	3#	4#	4#
Diameter of the center hole(mm)	Φ30*6	Φ40*10	Φ40*10
Width of t-slot (mm)	12	14	14
Adjacent angle of t-slot	60°	60°	60°
Width of the locating key(mm)	14	18	18
Modules of worm and worm gear	2	2.5	3.5
Transmission ratio of the worm gear	0.104166667	0.104166667	0.104166667
Graduation of the table	360°	360°	360°
Tilting table	0°~90°	0°~90°	0°~90°
Readout of the hand wheel	1’	1′	1′
Minimum value of vemier	10	10〞	10〞
Minimum reading of the tilting vemier	2’	2’	2’
Indexing accuracy	60〞	60〞	60〞
Max bearing(with table hor)kg	200	250	300
Max bearing(with table vert)kg	100	125	150
Net weight kg	80	135	280
Gross weight kg	93	150	305
Case dimensions mm	550430330	630490395	830600460
