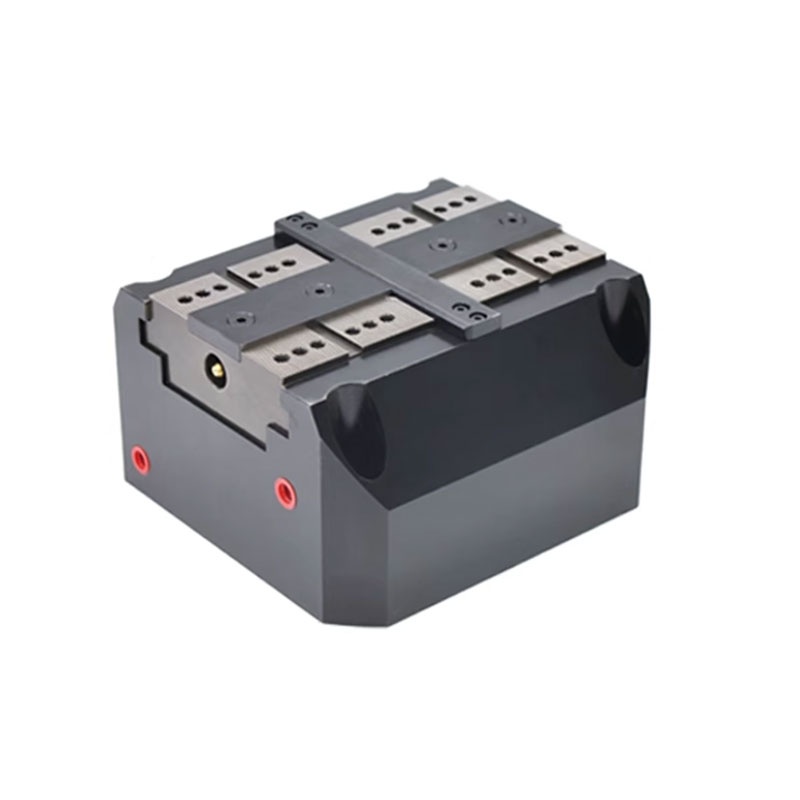

Ang-Fixed Milling vise
- Product No.:VA
Ang-Fixed Milling vise VA-4,VA-5,VA-6,VA-8
Features:
The enclosed lead screw and sliding surface are harden and ground.
Highest clamping power.It's very accurate and durable.
This vise is so designed that the horizontal force generated by tightening the handle pushes the semisphere within the movable jaw and thus thrusts the movable jaw downward.
There fore, the workpieces does not filt,even if it is held at the top of the jaw plates.
Four setting positions of the jaw plates are available, widening the jaw plates opening.
Accurace within 0.02MM
Ang-fixed Milling vise's specification
Model |
A |
B |
C |
a |
b |
c |
d |
e |
Clamp force(KG) |
Packing size |
G.W |
VA-4″ |
102 |
34 |
104 |
320 |
175 |
92 |
240 |
28 |
1500 |
35*24*15 |
20KG |
VA-5″ |
130 |
36 |
130 |
360 |
212 |
100 |
254 |
35 |
2000 |
41*31*17 |
30KG |
VA-6″ |
150 |
45 |
146 |
420 |
240 |
117 |
324 |
42 |
2500 |
49*35*20 |
42KG |
VA-8″ |
200 |
58 |
200 |
550 |
296 |
141 |
380 |
48 |
3000 |
63*41*24 |
95KG |
