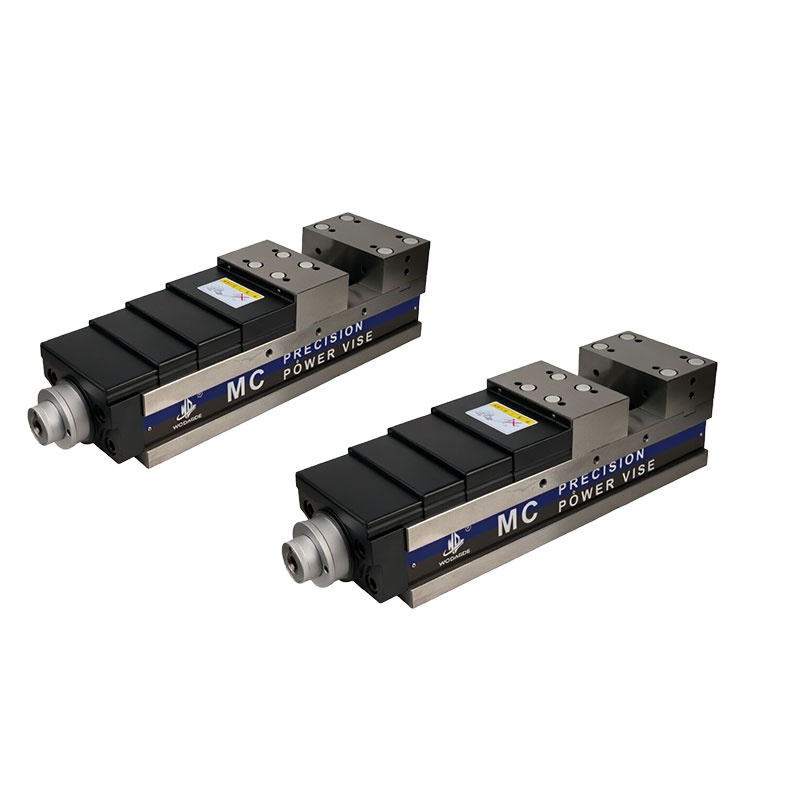

WDV MC power vise

Product No.：2026418155936
Online Inquiry

MC angle solid / Ken times fine hydraulic vise: high power type full range of precision hydraulic vise, for vertical and
horizontal integrated machining center, ordinary milling machine, rocker drilling, planer, boring machine, and other Mechanical
processing.

----------------------------------------------------------------------------------------------------------------------------------

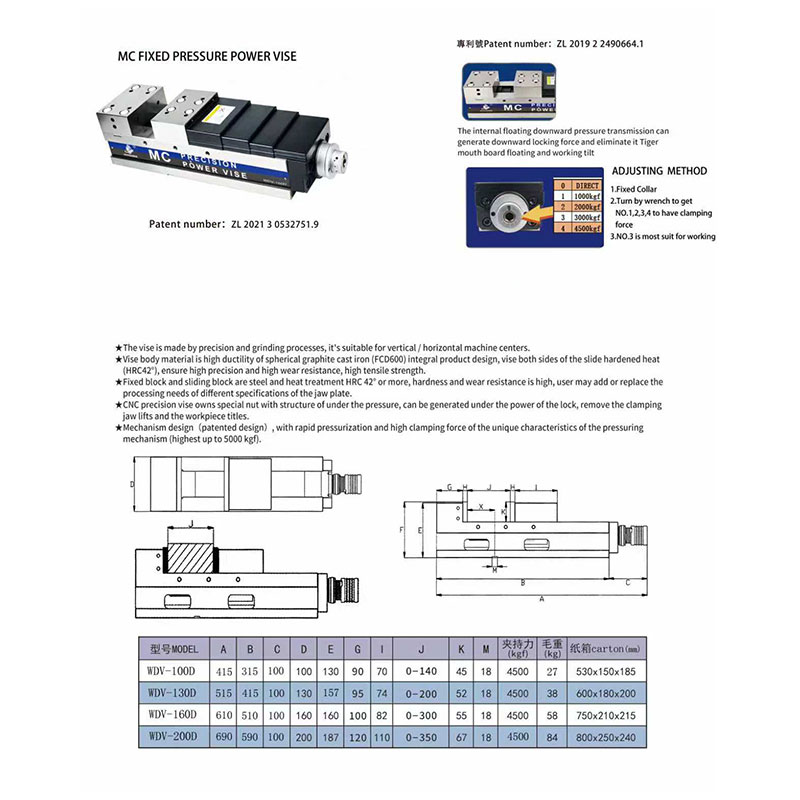

The vise is made by precision and grinding processes,
it's suitable for vertical / horizontal machine centers.*Vise body material is high ductility of spherical graphite cast iron (FcD600) integral product design, vise both sides of the slide hardened heat(HRC42°),
ensure high precision and high wear resistance, high tensile strength.
*Fixed block and sliding block are steel and heat treatment HRC 42° or more,hardness and wear resistance is high, user may ad or replace theprocessing needs of different specifications of the iaw plate.*
CNc precision vise owns specialnut with structure ofunder the pressure, can be generated under the power ofthe lock, remove the clampingiaw lifts and the workpiece titles.*Mechanism design (patented design) ,with rapid pressurization and high clamping force of the unique characteristics of the pressuringmechanism (highest up to 5000 kgf).
