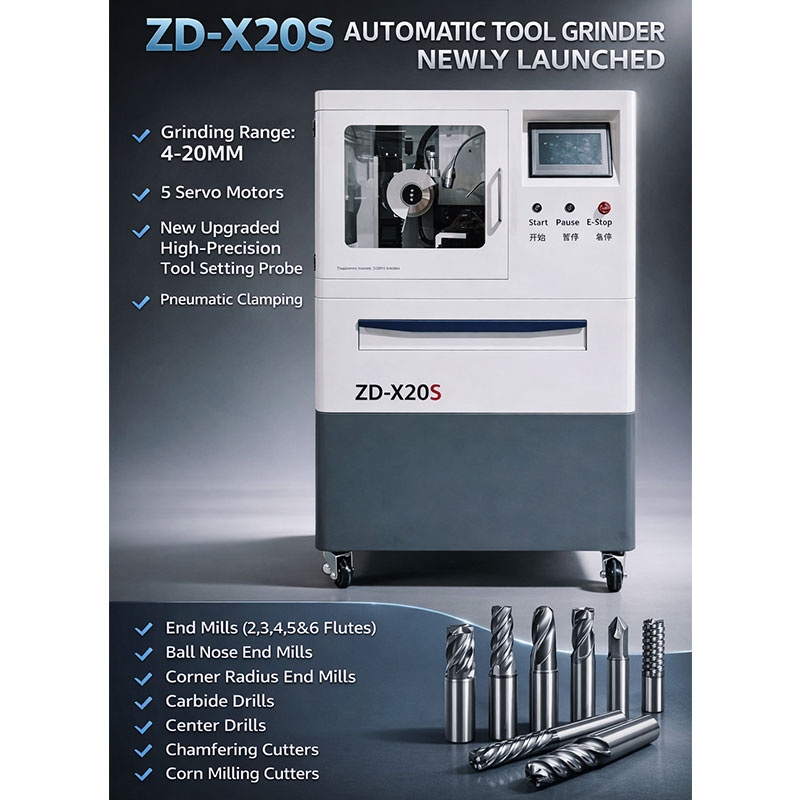

ZD-X20S cnc tool grinder

Product No.：20264189266
Online Inquiry

This product is an automatic CNC milling cutter grinder powered by a servo motor,
suitable for regrinding tungsten steel, hard alloy, and high-speed steel cutting tools.
Grinding tool models: flat milling cutter, ball milling cutter, round nose milling cutter, drill bit, chamfering cutter, centering drill, corn milling cutter.

With pnemaitc clamping ,high precision sensor

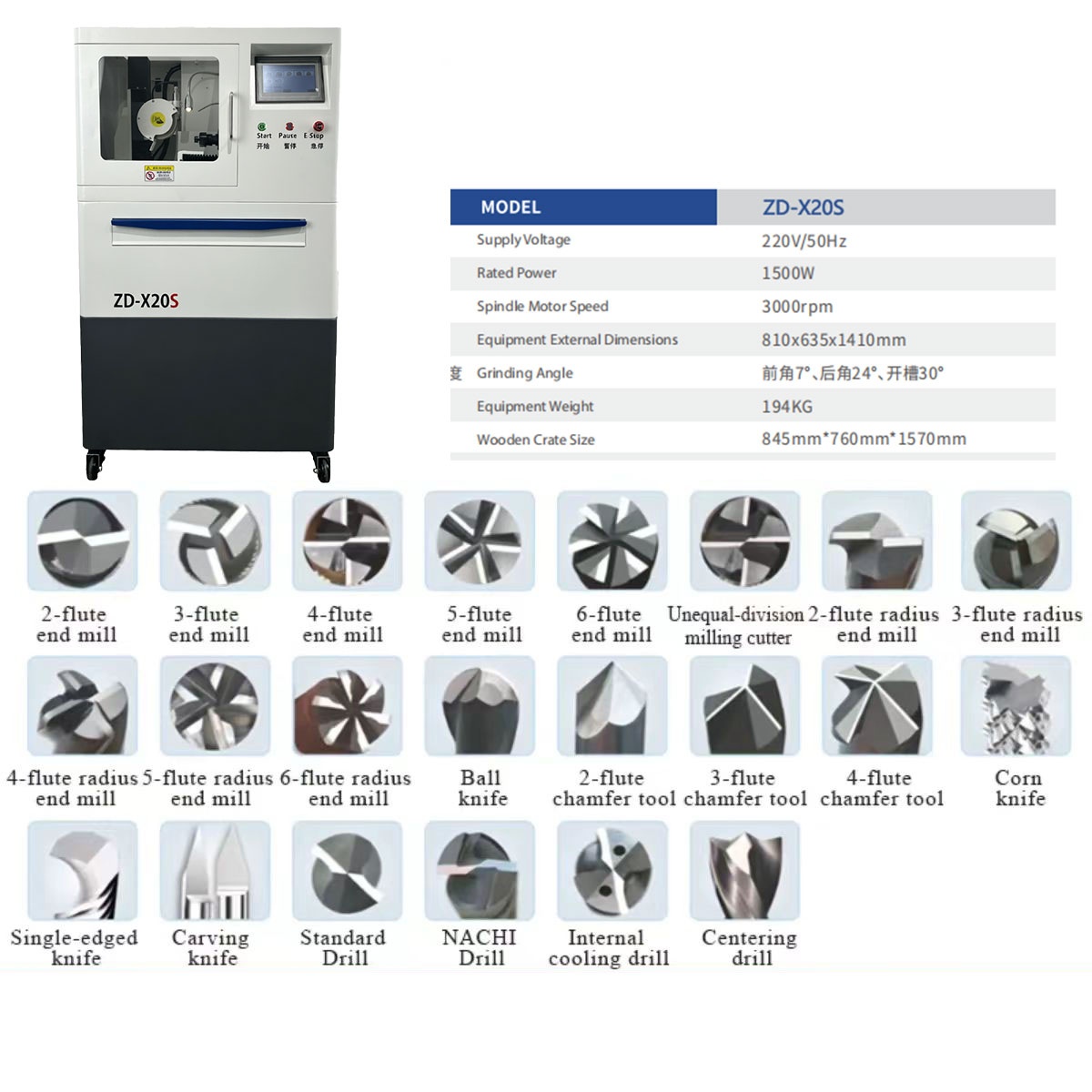

Model	ZD-X20S
Supply voltage	220v
Power rating	1500w
Spindle motor speed	3000rpm
Contour size of the unit	862mm×788mm×1435mm
Grinding Angle of milling cutter blade	Front Angle 7, Rear Angle 24, Groove 30
Weight of equipment	machine weights:180KG /gross weights:220kg
Grinding wheel size	Aφ124×11/Bφ124×11/Cφ124×11/Dφ124×5.50 standard is carbide wheel install in the machine 4pcs ,if need to grinding hss types we also have cbn wheels in stock
grinding types	flat milling cutter, corner radius, ballnose, drill bit, chamfering cutter, centering drill, corn milling cutter,can choose grinding angles as you need and flutes of tools such as (2f,3f,4f,5f,6f)
