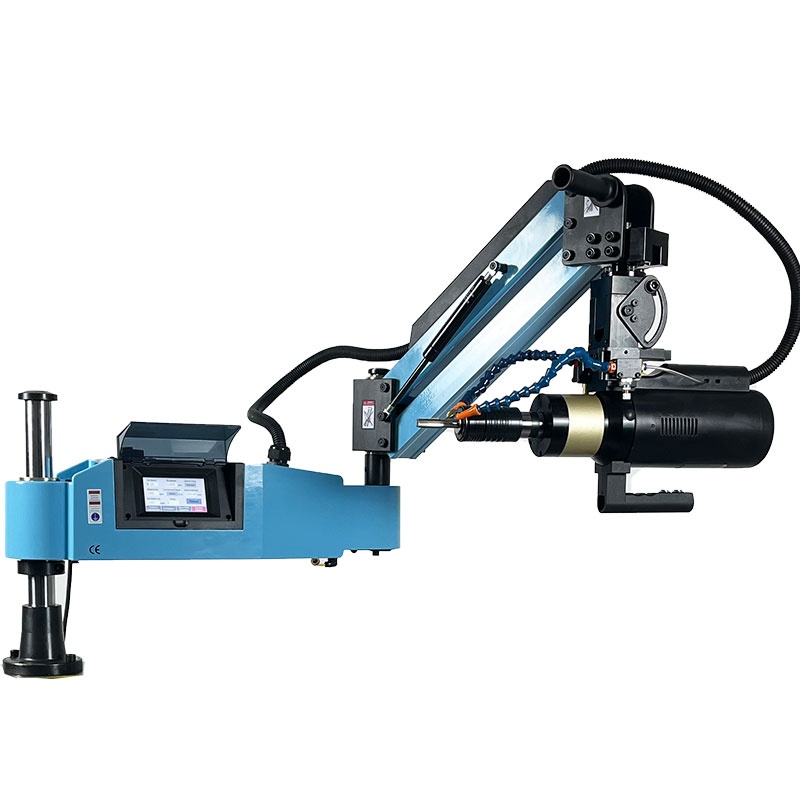

M24 spray oil and cooling tapping machine

Product No.：202367152910
Online Inquiry

Electric tapping machine / tapping arm

This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.

Tapping machine is equipped with a mist spray function, which ensures both cooling and lubrication of the tapping process. The system is fully integrated into the tap arm interface and can be automatically turned on and off via the HD touchscreen. When the liquid exits the spray surface of the nozzle, it breaks up into a fine mist of uniform micron-sized droplets. This allows the process to be cooled and lubricated for fast and accurate tapping. With the included flexible mist spray hose you can spray the oil/air mixture on the tap at all common angles. In addition, the mist spray also saves costs, extends the life of equipment, saves the environment and ultimately saves costs.

The tapping machine also has the following features:

HD Touchscreen for easy control in Dutch, English and French

PLC control

Self-lubricating bronze bushings for optimum flexibility

Dynamically adjustable tap depths

Integrated on/off button

Weightless operation thanks to gas springs

Powerful servo motor

Electrically adjustable torque

Adjustable input and output speed

Specifications:

No	Modle	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
1	Tap size	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
2	Voltage	220v	220V	220V	220V	220V	220V
3	Speed	0-1200rpm	0-370rpm	0-200rpm	0-200rpm	0-150rpm	50-200rpm
4	Power	600W	600w	1200W	1200w	1200W	1200W
5	Arm	1100MM/1500MM	1100MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM
6	Standard accessory	ISO M3-M12 collet	ISO M3-M16 collet	ISO M6-M24 collet	ISO M6-M30 collet	ISO M6-M36 collet	ISO M12-M48 collet
7	Weight	29kg	29kg	55kg	55kg	55kg	110kg

Supported by hi-tech infrastructure we are manufacturer and exporterss able to offer our clients a durable range of Flexible Arm Tapping Machines to our valued clients. Manufactured from premium quality metals these Flexible Arm Tapping Machines are superb in quality and assures trouble free performance. These find their wide application in various engineering industries like Rolling Mill manufacturer, Power Press Manufacturer,Paper Mill Manufacturer,Automobile Parts Manufacturer,Extruder Manufacturer and many more. Customers can also avail customized Flexible Arm Tapping solution as per their choices. Our product offering a wide range of Tapping Machines that includes Pneumatic Flexible Arm Tapping Machine, Electric Flexible Arm Tapping Machine, Hydraulic Flexible Arm Tapping Machines, CNC controlled Flexible Arm Tapping Machine, Portable Flexible Arm Tapping Machine, Portable electromagtic Flexible Arm Tapping Machine, Portable Drilling cum Tapping Machine, Portable electromagetic Drilling cum Tapping Machine, Mini Radial Machine and Tapping Machines with Multi Position Head.
